DOUBLE DRUM WALK BEHIND ROLLER

UNI 600 WALK BEHIND ROLER WTH GREAVES DIESEL ENGINE

Approx Price: Rs / Piece

Get Latest Price

Product Details:

Engine Power 9 HP
Brand Unicorn
Max Working Speed 3000 RPM
Model Name/Number UNI 600
Water Tank Capacity 35 L
Engine Type Air-cool Diesel/Gasoline
Compaction Capacity 25000 Sq. Feet / Hr
Fuel Tank Capacity 18 L
Dimensions 1350x750x1150 mm
Vibration Frequency 70 Hz
Static Linear Load 45N/CM
Vibrating Clutch Method Automatic
Weight 580 Kg
Wheel Size 600x420 mm x 2
Watering System Gravity Sprinkle System


We are engaged in presenting a Double Drum Walk Behind Roller Machine is modern compact design for use in a wide range of compaction application. Hydraulic with integrated travel control eases the operating effort required for movement. The famous Unicorn ouble Drum Walk Behind Roller has the vibratory source located in the drum which provides maximum compaction and traction performance.

Advantages:

  • Equipped with brand name power, superior performance, easy to start.
  • Operating radius is small, in an extremely narrow area operation.
  • use of domestic brand name hyadraulic pumps, motors, before and after the road, easy to operate
  • Lengthened armrest, steering convenience, can adapt to different height of the operation.
  • Surface spray, rust and corrosion
  • Infinitely variable speed control
  • Hydraulic vibration drive
  • Water sprinkler system drum scrappers
  • Hydraulic vibration control
  • High gradient capacity


Optional Features:

  • Electrically Operated
  • Self stating arrangement
Yes I am Intrested Download Brocher

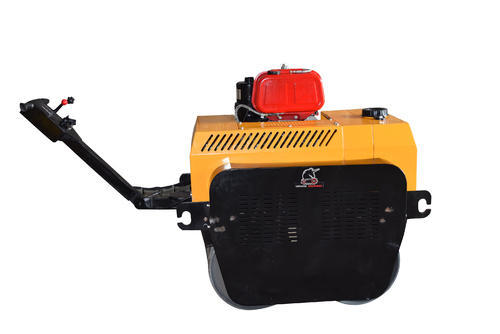

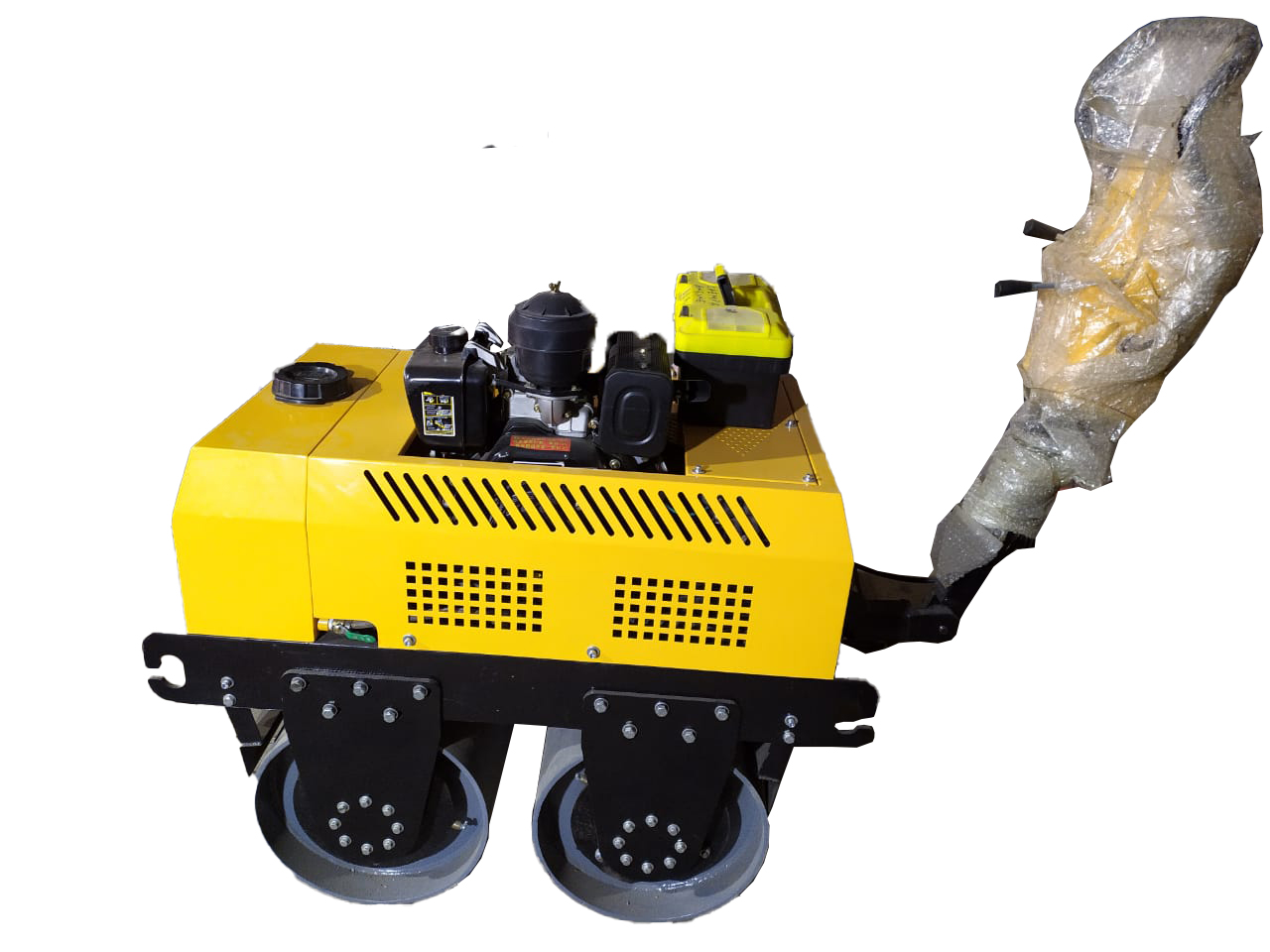

UNI 600 WALK BEHIND ROLER WTH GREAVES DIESEL ENGINE Images
