TAMPING RAMMER

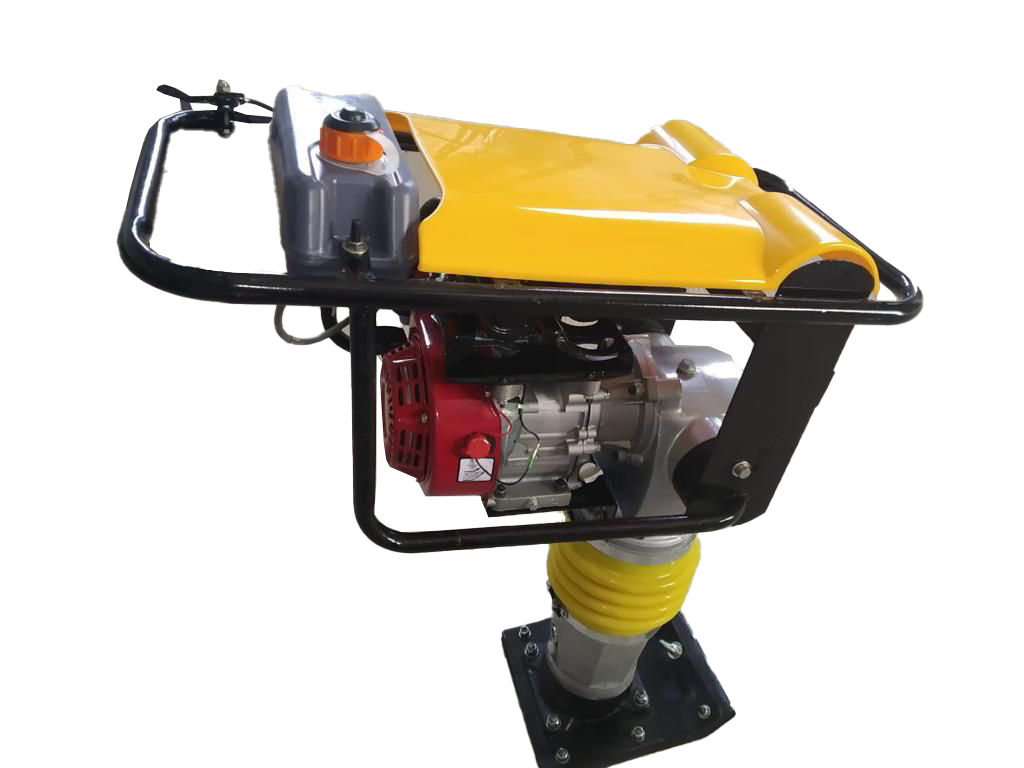

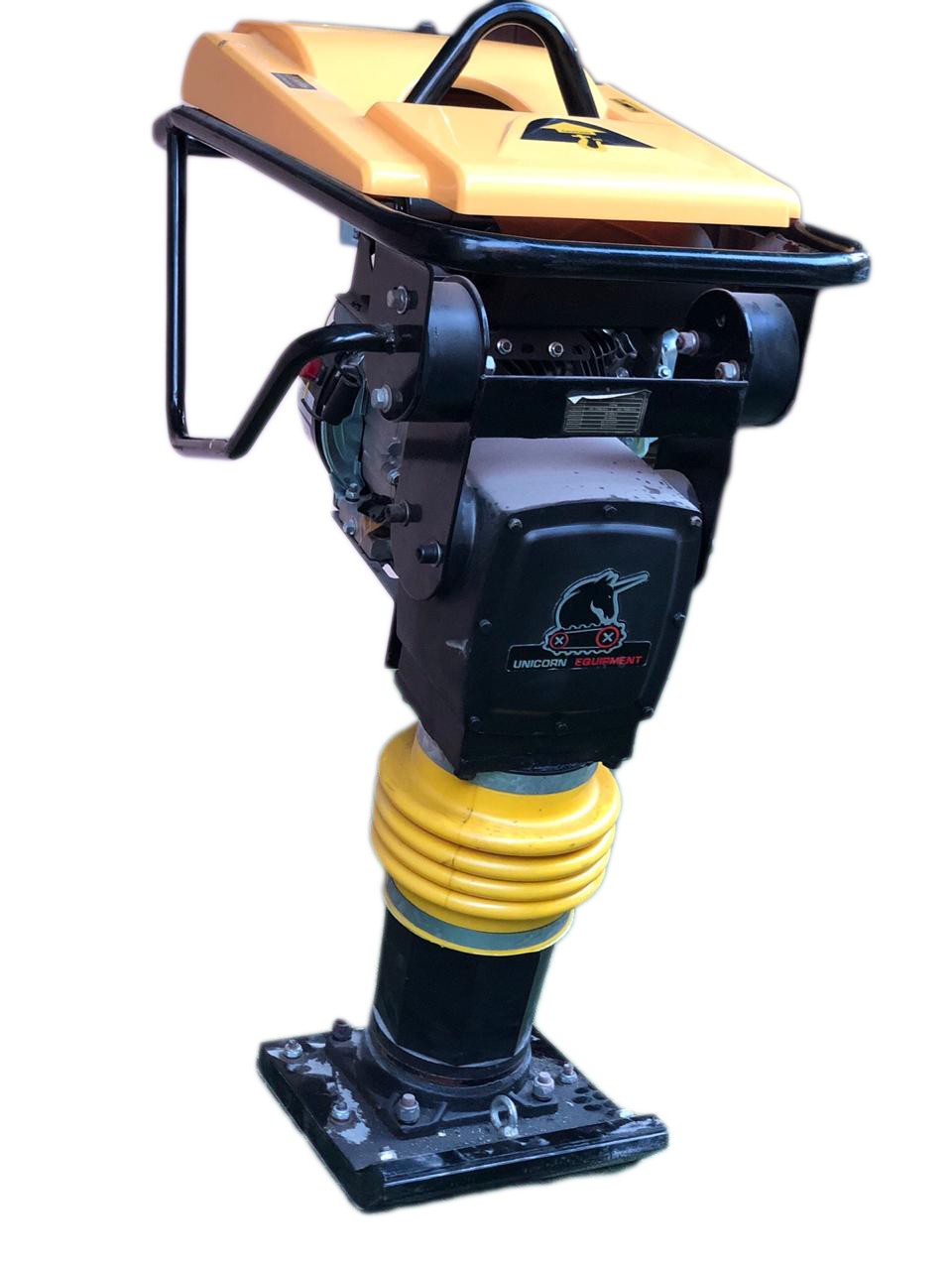

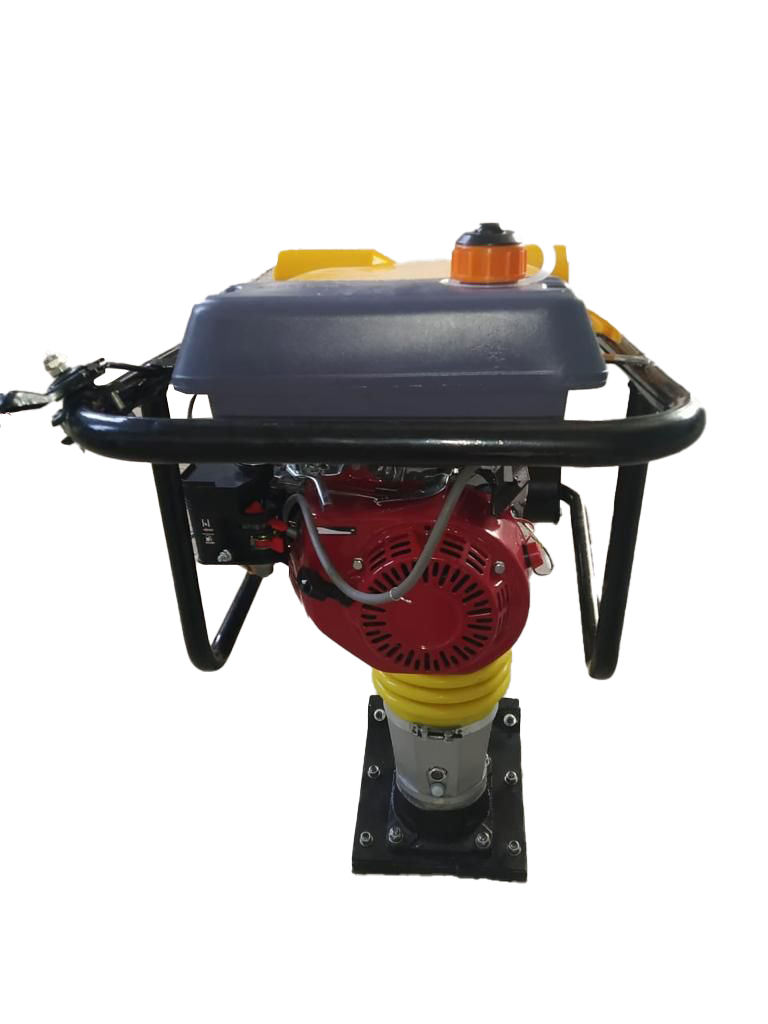

UNI 100M TAMPING RAMMER

Approx Price: Rs / Piece

Get Latest Price

Product Details:

Brand Unicorn
Impluse Force 14 kN
Operating Weight 83 Kg
Fuel Tank Capacity 3 L
Oil Tank Capacity 0.7 L
Dimension 900*510*1150 mm
Shoe Size 335*285 mm
Forward Speed 10-13m/min
Jumping Stroke 350*150*1.5 mm
Diameter Of Finish Disc 40-80 mm
Engine Model GX160/GX100
Fuel Consumption 1.2 l/h


Honda engine vibrating Tamping Rammer for soil compaction (UM 100) Unicorn Gasoline Tamping Rammer features the best forward-movement in the industry, helping contractors in all applications work productively and ultimately achieve compaction targets. The forward-moving ability makes them the tool of choice for contractors and rental agencies. The rammer also are so easy to use that operators of all experience levels are able to perform productively. They are more comfortable, too, because of the reduced-vibration handle. That lessens fatigue and ultimately proves to be another productivity booster. Unicorn Gasoline Tamping Rammer is used for tamping of engineering foundation and groove backfill in the field of road, public project, gas, water delivery, railway and so on.

Features:

  • Honda engine, excellent performance.
  • High strength spring, large amplitude jump, and strong pounding power
  • High strength base plate design, the hardness, and softness is moderate, which is durable.
  • The noise reducing cover lowers the amount of engine and shoe noise transmitted to the operator.
  • The large capacity and corrosion-proof fuel tank is equipped with a self-cleaning in-tank filter. That means long service life and minimum maintenance.
  • For added operator convenience, a single lever controls start-up, speed, and engine shut-off.
  • The handle, the height, proper shoes and a low center of gravity that enables control make the Unicorn Gasoline Tamping Rammer easy to operate regardless of experience level.
  • The shoes are easy to switch, too; all that's required is the removal of four screws.
  • A reduced-vibration handle prevents operator fatigue. In addition, the handle can be gripped from all sides, enabling easy access to tight spaces. The operator can turn the machine 180 degrees to reach tight areas while maintaining, optimal control of the rammer at all times.
  • A patented process enables rammer height to be easily adjusted, a significant benefit as the operator attempts t maximize manoeuvrability and comfort throughout the shift.


Applications:

  • Trench Compaction
  • Back Filling
  • Pipe Work
  • Foundation Work
  • Patch Work on Roads
  • Confined Areas


Product Parameter:

  • Honda Engine, 5.5Hp Horse Power, Easy to Change Spare Parts & Lower Cost
  • High-Quality Aluminium Alloy Box, Impact Resistance, Long Working Time
  • Original Import Dust Cover, Strong & Durable
