PLATE COMPACTOR

UNI REVERSIBALE PLATE COMAPCTOR WITH HONDA ENGINE

Approx Price: Rs 80000 / Piece

Get Latest Price

Product Details:

Compacting Plate Size 700 x 370 mm
Compaction Capacity 6.8 Ton
Dimension 800 x 500 x 1000 mm
Fuel Tank 3 L
Max Output 5.5 / 6.5 HP
Max Speed 3600 RPM
Model UNI 150
Weight 160 Kg
Vibration Frequency 50 Hz
Engine Type Honda GX 160/ Greaves/ Changfa
Depth Effect 16 inch approx
Centrifugal Force 30 kN
Power 7 kW
Brand Unicorn


Reversible Plate compactor for soil compaction (UNI150):
The Unicorn reversible plate compactor is ideal for smaller jobs like trenches, retaining walls & other narrow areas or tight areas.

The Vibratory Plate Compactor (Reversible) is designed for compacting loose, granular soils, gravel, paving stones & asphalt. It is intended to be used in confined areas & areas next to structures such as walls, curbs, & foundations. Plate Compactors with water tank can be used for compacting asphalt. The Plate compactor is not recommended for the compaction of cohesive soils with heavy day content. For cohesive soils, use a Tamping Rammer.

Advantages:

  • Reverse plate compactor makes it more convenient to operate.
  • Ductile iron base plate provides better durability.
  • Open plate provides self cleaning.
  • Radius base plate for easy access to corners.
  • Sealed belt cover to prevent sand and soil in.
  • Heavy-duty shock mounts reduce vibration to the upper engine & handle.
  • Plate compactor with wear-resistant base plates open design reduces dirt building.
  • Plate compactor with wrap around protection frame protects the compactor from accidental job-site damage.



Applications:

  • Roadside
  • Foundation Structure
  • Compaction Asphalt
  • Concrete


Special Features:

  • Handle moves to a vertical position for use in tight spaces
  • 5.5 HP Honda Gx160 engine provides high power and low fuel consumption.
  • 3 3/16in. x 14 3/4in. Compacting Plate is ideal for smaller jobs.
Yes I am Intrested Download Brocher

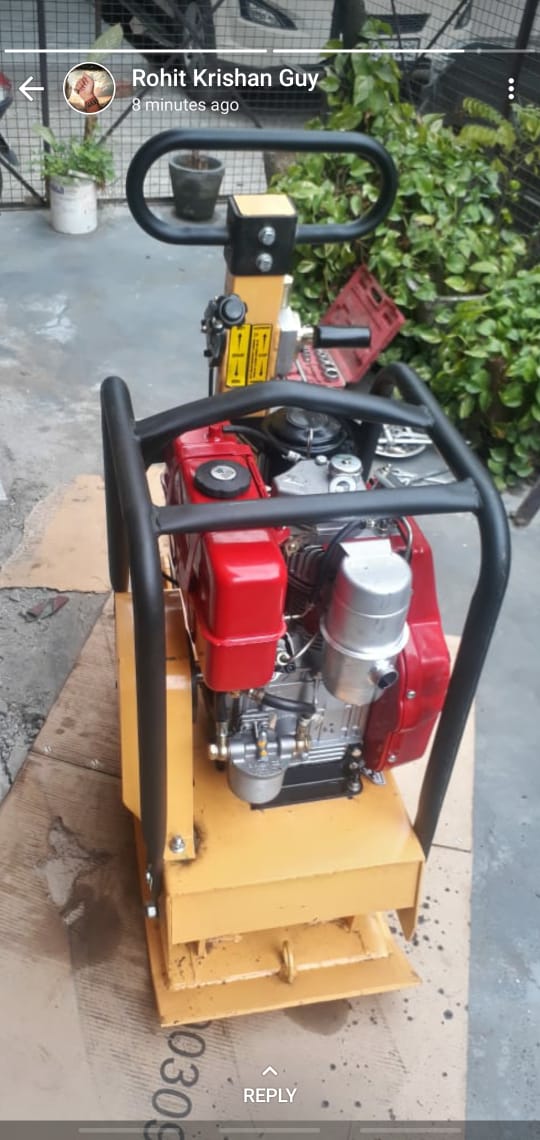

UNI REVERSIBALE PLATE COMAPCTOR WITH HONDA ENGINE Images
